Azure Kubernetes Metric Adapter

NOTE: This project is no longer actively maintained and some of the information might be outdated. Please checkout KEDA. The scenarios described below have been ported to that project.

TLDR; The Azure Kubernetes Metric Adapter is a experimental component that enables you to scale your application deployment pods running on any Kubernetes cluster using the Horizontal Pod Autoscaler (HPA) with External Metrics from Azure Resources (such as Service Bus Queues) and Custom Metrics stored in Application Insights.

Checkout a video showing how scaling works with the adapter, deploy the adapter or learn by going through the walkthrough.

I currently work for an awesome team at Microsoft called CSE (Commercial Software Engineering), where we work with customers to help them solve their challenging problems. One of the goals of my specific team inside CSE is to identify repeatable patterns our customers face. It is a challenging, but rewarding role where I get to work on some of the most interesting and cutting edge technology. Check out this awesome video that talks about how my team operates.

While working with customers at a recent engagement, I recognized a repeating pattern with in the monitoring solutions we were implementing on Azure Kubernetes Service (AKS) with customers. We had 5 customers in the same room and 3 of them wanted to scale on custom metrics being generated by their applications. And so the Azure Kubernetes Metric Adapter was created.

Why do we need the Azure Kubernetes Metric Adapter

One of the customers was using Prometheus and so we started to look at the Kubernetes Prometheus metric adapter, which solves the problem of scaling on custom metrics when you are using Prometheus in your cluster. The Prometheus adapter using the custom metrics api to scale instead of heapster. You can learn more about the direction Kubernetes is moving with custom metrics here.

Two of the other customers were not using Prometheus, instead they using Azure services such as Azure Monitor, Log Analytics and Application Insights. At the engagement, one of the customers started to implement their own custom scaling solution. This seemed a bit repetitive as the other customer where not going to be reuse there solution. And so Azure Kubernetes Metric Adapter was created.

What is the Azure Kubernetes Metric Adapter

The Azure Kubernetes Metric Adapter enables you to scale your application deployment pods running on AKS (or any Kubernetes cluster) using the Horizontal Pod Autoscaler (HPA) with External Metrics from Azure Resources (such as Service Bus Queues) and Custom Metrics stored in Application Insights.

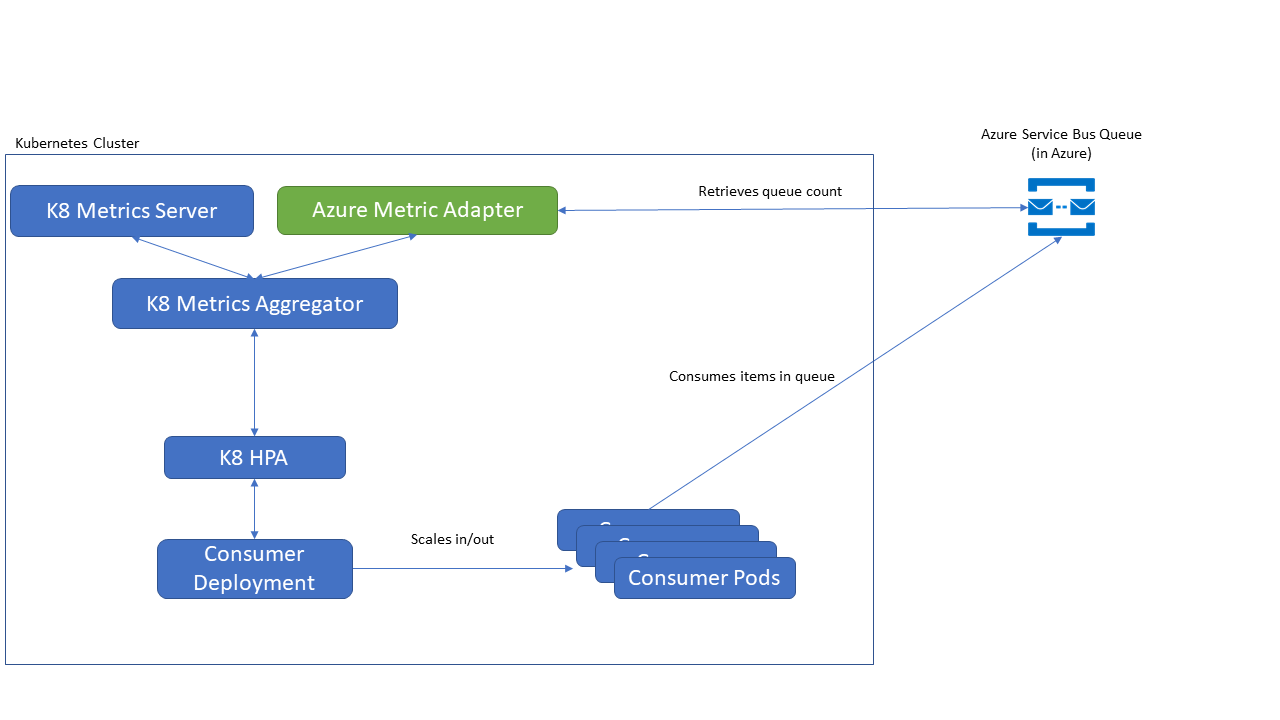

That is a bit of a mouth full so let’s take a look at wha the solution looks like when deployed onto your cluster:

The Azure Metric Adapter is deployed onto you cluster and wired up the Horizontal Pod Autoscaler (HPA). The HPA checks in periodically with the Adapter to get the custom metric defined by you. The adapter in turn calls to an Azure endpoint to retrieve the metric and give it back to the HPA. The HPA then evaluates the value and compares it to the target value you have configured for a given deployment. Based on an algorithm the HPA will either leave you deployment alone, scale up the pods or scale them down.

As you can see you there is no custom code needed to scale with custom or external metrics when using the Adapter. You deploy the Adapter, configure an HPA and the rest of the scaling is taken care of by Kubernetes.

When can you use it?

It is available now as an experiment (alpha state - don’t run in production). You should try it out on your development and test environments and give feed back on what works, what doesn’t on github issues, and any features you want to see.

How can you use it?

There are two main scenarios that have been addressed first and you can see a step by step walk through for each, though you can scale on any Application Insights metric or Azure Monitor Metric.

• Scaling using Queue count from Azure Service Bus
• Scaling using Request Per Second from Application Insights

If you prefer to see it in action checkout this video:

Deploying

First you deploy it to your cluster (requires some authorization setup on you cluster)

kubectl apply -f https://raw.githubusercontent.com/Azure/azure-k8s-metrics-adapter/master/deploy/adapter.yaml

Next you create an HPA and define a few values. An example would be:

apiVersion: autoscaling/v2beta1
kind: HorizontalPodAutoscaler
metadata:
 name: consumer-scaler
spec:
 scaleTargetRef:
   apiVersion: extensions/v1beta1
   kind: Deployment
   name: consumer-scaler
 minReplicas: 1
 maxReplicas: 10
 metrics:
  - type: External
    external:
      metricName: queuemessages
      metricSelector:
        matchLabels:
          metricName: Messages
          resourceGroup: sb-external-example
          resourceName: sb-external-ns
          resourceProviderNamespace: Microsoft.Servicebus
          resourceType: namespaces
          aggregation: Total
          filter: EntityName_eq_externalq
      targetValue: 30

And deploy the HPA and watch your deployment scale:

kubectl apply -f hpa.yaml

kubectl get hpa consumer-scaler -w
NAME              REFERENCE             TARGETS   MINPODS   MAXPODS   REPLICAS   AGE
consumer-scaler   Deployment/consumer   0/30      1         10        1          1h
consumer-scaler   Deployment/consumer   27278/30   1         10        1         1h
consumer-scaler   Deployment/consumer   26988/30   1         10        4         1h
consumer-scaler   Deployment/consumer   26988/30   1         10        4         1h           consumer-scaler   Deployment/consumer   26702/30   1         10        4         1h
consumer-scaler   Deployment/consumer   26702/30   1         10        4         1h
consumer-scaler   Deployment/consumer   25808/30   1         10        4         1h
consumer-scaler   Deployment/consumer   25808/30   1         10        4         1h           consumer-scaler   Deployment/consumer   24784/30   1         10        8         1h           consumer-scaler   Deployment/consumer   24784/30   1         10        8         1h
consumer-scaler   Deployment/consumer   23775/30   1         10        8         1h
consumer-scaler   Deployment/consumer   22065/30   1         10        8         1h
consumer-scaler   Deployment/consumer   22065/30   1         10        8         1h
consumer-scaler   Deployment/consumer   20059/30   1         10        8         1h
consumer-scaler   Deployment/consumer   20059/30   1         10        10        1h

And your that’s it to enable auto scaling on External Metric. Checkout the samples for more examples.
